Volute Press

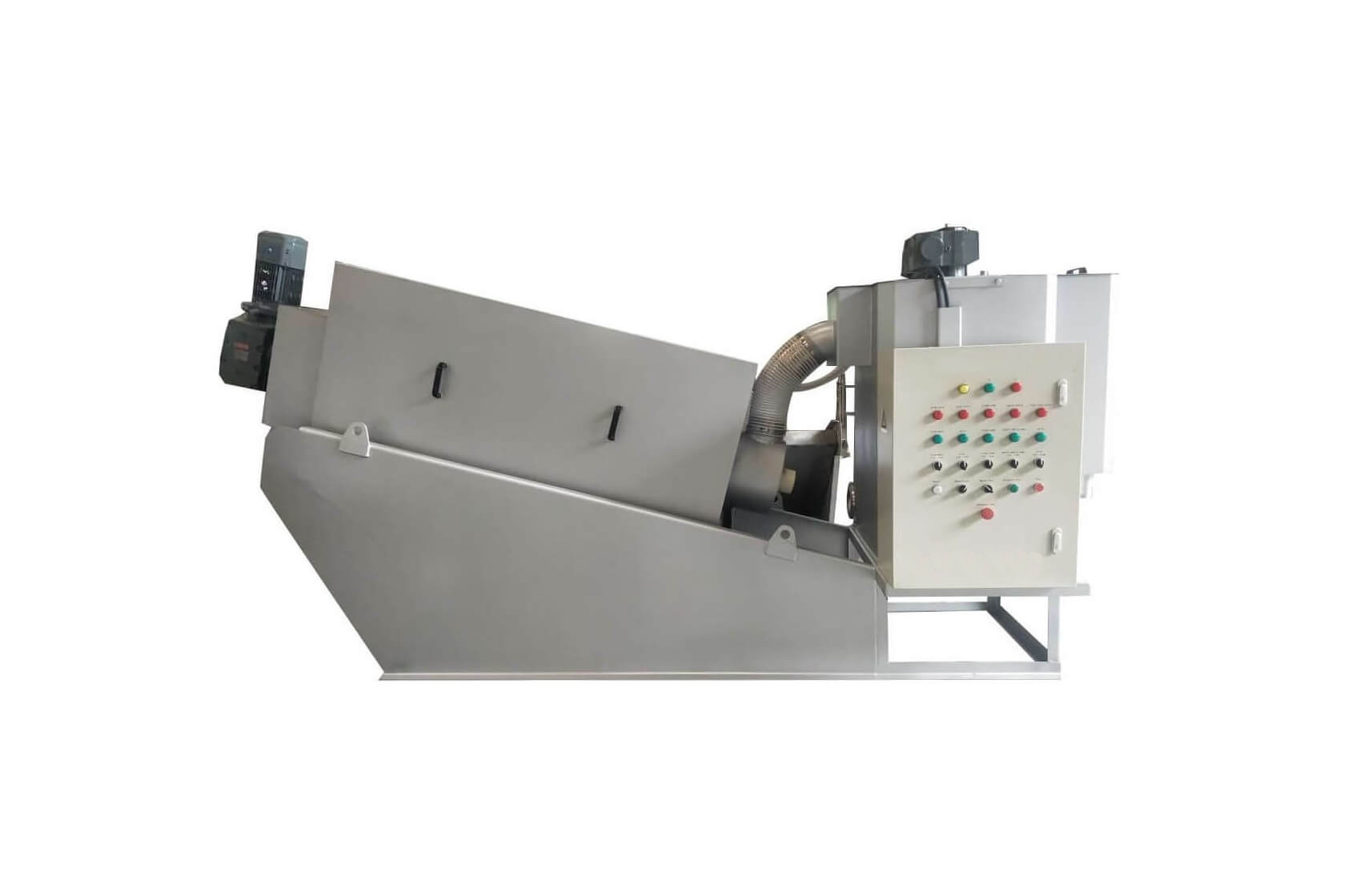

What is Volute Press?

The Volute Dewatering Press is a fully automated system capable of starting up, operating, and shutting down with no operator intervention. This is possible because the control panel is designed to control the operation of wasting sludge directly from the biological processor or clarifier, the automated polymer feed system, flocculation, dewatering, and any conveyors required to remove dewatered cake.

Sludge will be transported to the dewatering department after being thickened in the thickening department. In the advancing process, great pressure has been produced because of the gradually decreasing spacing and screw distance, and the back platen clogging. Then the volume decrease continuously, and the purpose of fully dewatering will be achieved

Model Selection :

Model	Standard Dry Sludge (Kg/hr)	Capacity of Sludge with different concentration (mg/L)
Model	Standard Dry Sludge (Kg/hr)	10000	20000	30000	40000	50000
GF101	5 ~ 7	~ 0.5 m³	~ 0.25 m³	~ 0.2 m³	~ 0.15 m³	~ 0.14 m³
GF131	10 ~ 14	~ 1 m³	~ 0.5 m³	~ 0.4 m³	~ 0.3 m³	~ 0.26 m³
GF201	15 ~ 20	~ 1.5 m³	~ 0.75 m³	~ 0.6 m³	~ 0.5 m³	~ 0.4 m³
GF202	30 ~ 40	~ 3 m³	~ 1.5 m³	~ 1.2 m³	~ 1 m³	~ 0.8 m³
GF301	50 ~ 70	~ 5 m³	~ 2.5 m³	~ 2 m³	~ 1.5 m³	~ 1.4 m³
GF302	100 ~ 140	~ 10 m³	~ 5 m³	~ 4 m³	~ 3 m³	~ 2.8 m³
GF303	150 ~ 210	~ 15 m³	~ 7.5 m³	~ 6 m³	~ 4.5 m³	~ 4.2 m³
GF401	130 ~ 160	~ 13 m³	~ 6.5 m³	~ 5 m³	~ 4 m³	~ 3.2 m³
GF402	260 ~ 320	~ 26 m³	~ 13 m³	~ 10 m³	~ 8 m³	~ 6.4 m³
GF403	390 ~ 480	~ 39 m³	~ 19.5 m³	~ 15 m³	~ 12 m³	~ 9.6 m³
GF404	520 ~ 640	~ 52 m³	~ 26 m³	~ 20 m³	~ 16 m³	~ 12.8 m³
